Palm Treo 680 Smartphone

Gadgeteer Hands On Review by Julie

February 12, 2007

Palm seems to be doing something right given the fact that their Treo line of smartphones has become hugely popular. I mean, I don't think I'm wrong when I say that the Treo is probably one of the most recognizable mobile phones on the planet these days. Turn on the TV and you'll spot this phone all over the place. After all, doesn't Jack Bauer of the show 24 use one?

My own personal Treo history started in 2005 with a 650 for Sprint that had been hacked to work on the Verizon network. Then I switched to Cingular and the GSM version of the 650. Since the 700 version was not available in a GSM model, I waited until the Treo 750v to try a new device. The 750v is a Windows Mobile phone and I've been using it for the last few months. Although I like the 750v, I have found myself wanting to go back to the Palm OS. As Palm's latest GSM smartphone, the Treo 680 appears to be my ticket back. Let's see if I stay on the Palm train...

Hardware Specs

Operating System: Palm OS 5.4.9
Memory: 64MB non-volatile flash memory available for user storage
Processor: Intel PXA270 312 MHz processor
Display: 320 x 320 pixel TFT touchscreen with support for over 65,000 colors
Wireless: GSM/GPRS/EDGE-class 10 radio, Quad band (850/900/1800/1900 MHz), Bluetooth 1.2, Infrared (IR)
Digital Camera: VGA 2x digital zoom, Video capture with 352 x 288 pixel resolution
Expansion Slot: MultiMediaCard, SD, and SD I/O cards
Battery: Rechargeable lithium-ion, Talk time: up to 4 hours, Standby time: up to 300 hours
Size: 4.4 x 2.3 x 0.8 in (113 x 59 x 21 mm)
Weight: 5.5 ounces (157 grams)

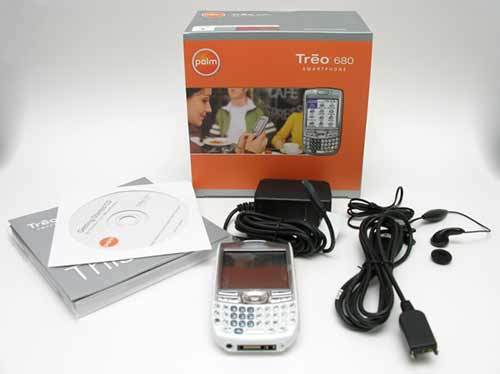

Package Contents

Palm Treo 680 smartphone
Rechargeable battery
AC power charger
USB sync cable
Headset
Stylus
Palm Software installation CD (with User Guide and desktop synchronization software for Windows and Mac)
User documentation

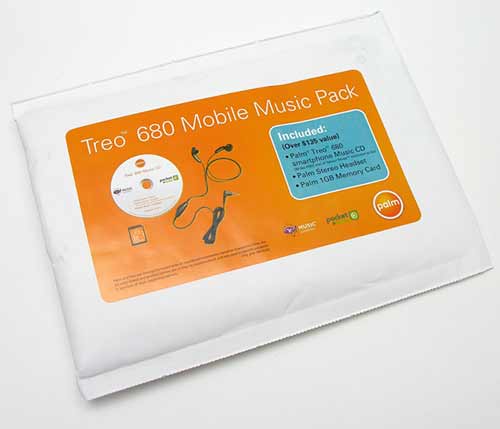

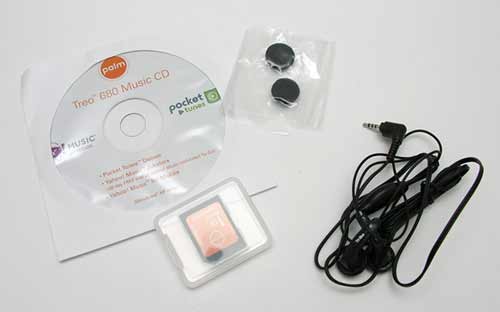

When I purchased my unlocked 680 directly from Palm a few weeks ago, I also received the Treo 680 Mobile Music Pack.

I'm not sure how much longer this pack will be included with the purchase of the phone, but it comes with a set of 2.5mm stereo earbuds, a 1gb SD card and a software CD that has the deluxe version of Pocket Tunes ($29.95 value) and a 30 day free trial of Yahoo! Music.

Hardware Design

The style / design of the Treo 680 has not changed much from the Treo 650 and 700 series devices. The most noticeable physical difference being the lack of the stubby antenna in the upper left corner.

The 680 is also the first Treo to be made available in different colors. In addition to good old Grey (Graphite), the unlocked 680 also comes in Arctic, Copper and Crimson. Unfortunately the 680 which is locked to Cingular (AT&T) is only available in Graphite. I decided to go with and unlocked White.

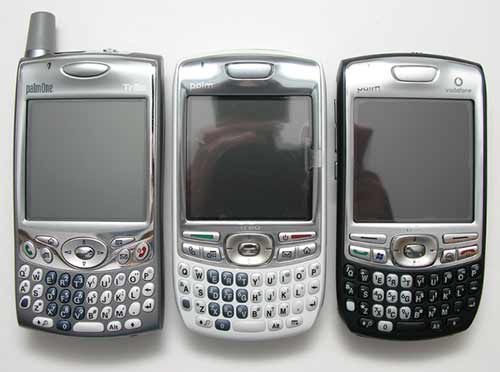

Left to Right: Treo 650, Treo 680 and Treo 750v

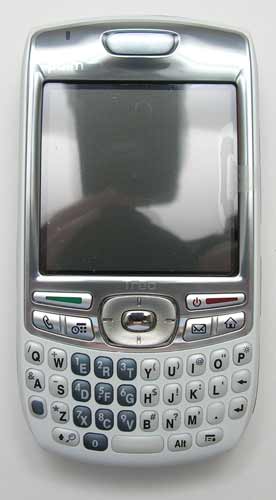

Front

In the image above, you can see the differences between 3 Treo versions. You'll notice that the 680 and 750v are almost identical in size and shape when compared to the 650. In hand, the 680 feels solid and rugged enough to stand up to daily usage. I do wish the 680 had a rubber coating on the body like the 750v does though... As is, the 680 feels a bit slippery. Performing my good old Gadgeteer squeeze / creak test on this phone caused no noticeable flexing or snap, crackle, pop case noises.

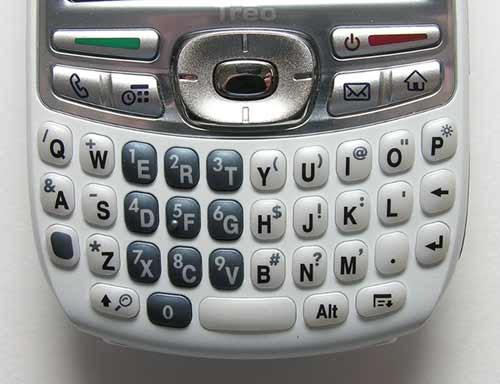

The keyboard layout hasn't changed all that much as new Treo models have come out. The buttons have good tactile feedback, but I have to say that I do prefer the buttons on my Treo 650 over the ones on the 680. The 680 keyboard buttons have a lower profile and are flatter. This makes typing (for me) just slightly harder.

Here's a shot of the 680, 650 and 750v button / keyboard layouts. You'll notice that the 680 and 750v keyboards have more of a 'smile' than the 650.

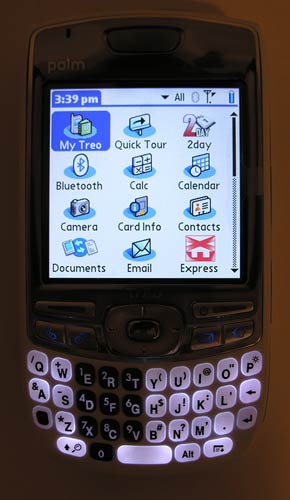

The 320 x 320 color display is bright and crisp. When I compared the display to my 650, I found it to be the same as far as brightness and vividness.

After using the lower resolution 750v (Windows Mobile) for several months, I didn't realize how much of a difference the higher resolution really makes.

Top

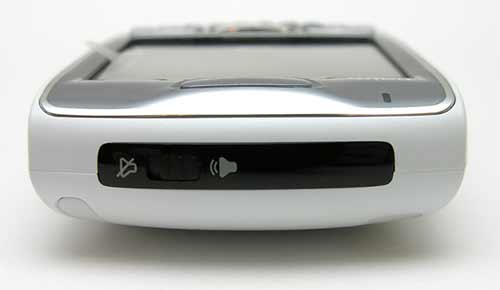

If we look at the top of the phone, we'll see the speaker on/off slider switch. When you flip the speaker to off mode, it will vibrate to indicate the new state. The IR lens is located next to the speaker switch.

Bottom

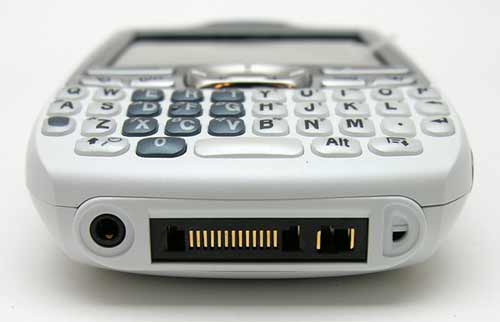

Along the bottom edge of the phone, you will find a 2.5mm stereo headphone jack, sync / charge connector and the microphone. The 680 is compatible with all prior Treo model sync / charge cables. I'm still using my several year old Seidio retractable USB cable.

Left Side

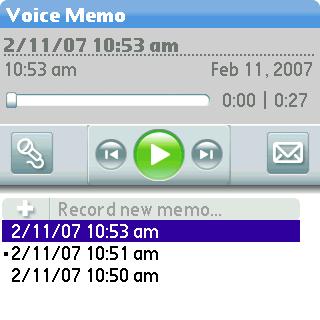

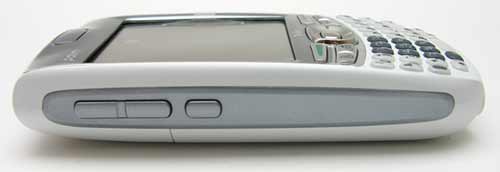

Located on the left side of the 680, are the up/down volume rocker button and a side button that by default is mapped to the voice memo application. Too bad you can't use this audio recording application to record phone conversations. I tested it and it only records what it picked up via the microphone. It does record both sides of a conversation if you use the speaker phone though.

As far as volume levels while using the phone, I had no issues and usually keep the volume set to two ticks down from maximum.

Right Side

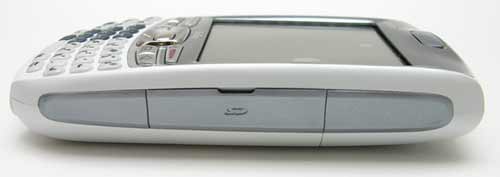

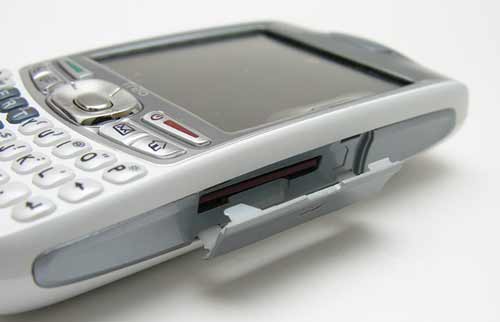

On the other side of the phone, is the SD card slot. I'm glad Palm decided to go with an SD slot instead of a Mini card slot like they did with the 750v. The slot is an SDIO slot, so you can use it for accessories such as an SD GPS module. The location is a bit inconvenient to have something left sticking out the side though.

On the 750v, there is a reset switch located next to the memory card slot. Such a switch does not appear in this location on the 680. Actually, there isn't a reset switch anywhere on the 680. So, how do you reset this device if it locks up? You have to take the cover off the back and remove the battery. Do I hear a collective grown from the audience? Yeah, I share that feeling too.

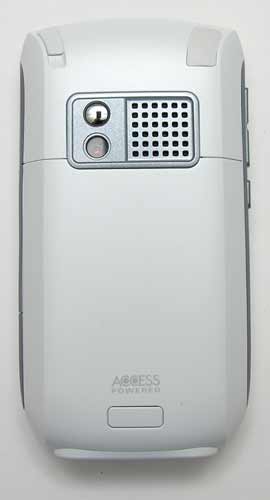

Back

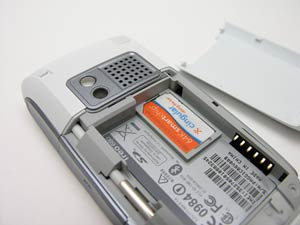

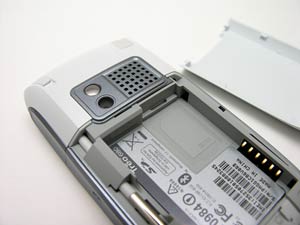

You'll find the SIM card slot under the battery. There is a little slide out tray directly under the speaker.

This Treo has a built-in VGA (640 x 480) camera. I wish Palm would put a better camera in their phones. While it's not horrible, it's also nothing to write home about...

Click on thumbnails to see fill-size images

My experience using this phone has not been overly different than my experiences with the Treo 650. The 680 feels just as snappy as far as launching and using various applications. That shouldn't be a surprise given the fact that both devices use the same speed processor.

The reception does appear to be noticeably better than the 650 though. Most of the time I have full bars where the 650 might show only 2.

According to the folks at Palm (I asked them this question during a meeting with them at CES early this year), the SAR rating for the 680 is lower than the notoriously high rating of the 650 (1.51). I don't have the exact stats, but if anyone is really interested, I can try to get the numbers. If you don't know, SAR (specific absorption rate) is an indication of the amount of radiation that is absorbed into a head whilst using a cellular phone, the higher the SAR rating the more radiation that is absorbed into the head.

The 680 lacks WiFi, so web surfing will have to be accomplished using a data package and EDGE. A lot of people complain that Treos lack WiFi, but I've never found this to be a problem for me as I almost never find myself in an area with a hotspot. Surfing using EDGE doesn't feel that painful to me. I conducted a speed test using http://www.dslreports.com/mspeed. The 200k test yielded the following results in 3 back to back tests:

149 kbit/sec, 1.258s latency
177 kbit/sec, 1.627s latency
149 kbit/sec, 1.201s latency

Battery life with the 680 is not as good as with the Treo 650. That's because the 650 has a 1800 mAh battery, while the 680 has a 1200 mAh battery. I will say that battery life on the 680 is much better since Palm put out a software patch a few weeks ago that fixes an issue with the built-in camera. Now instead of having to charge the 680 every night, I can charge it every other night.

I can't find much to fault with the 680's hardware. My biggest complaint is the lack of a reset switch and that's definitely not a deal breaker. Other than that, the 680 is pretty much the same as previous Palm OS based Treos. So, if you have been contemplating an upgrade from your current GSM Treo 650 to the new 680, I can't really encourage you. Unless your current 650 is displaying hardware problems, you're not going to gain much with an upgrade. Yes, you will get a bit smaller package (no antenna) and the ability to chose a colored shell. But those two things are not exactly earth shattering new features.

So, let's see if the software side of the 680 has been improved significantly...

Software

Installed in ROM
Blazer Web Browser
Bluetooth Manager
Calculator
Calendar
Camera
Card info
Contacts
Documents To Go 8.0
HotSync Manager
Memos
Messaging
MyTreo
Phone
Pictures and Videos
PocketTunes
QuickTour
Security
Tasks
VersaMail
Voice Memo
World Clock
Xpress Mail

Software on CD-ROM
Adobe Acrobat Reader
Audible
Bejeweled 1.0
Documents To Go Professional (including native PDF viewer)
Enterprise software link
eReader
Handmark Solitaire
Handmark Pocket Express
Palm Files
Remote File Access
Solitaire
Traffic for Treo smartphones
Treo Voice Dialing - trial version

Except for minor tweaks to the OS, the main software change I noticed immediately with the 680 was the new calling interface.

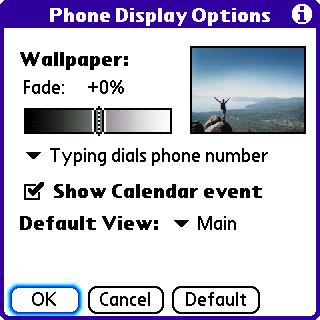

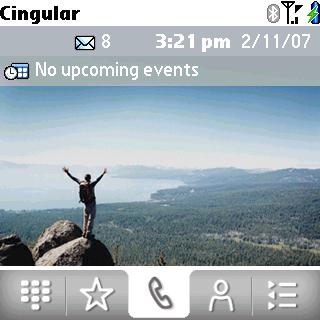

By default, when you press the call hardware button, it takes you to the screen you see above. This screen is a minimal status screen that shows your next calendar event, time, and number of unread emails. The only customization option you have is the ability to change the background picture.

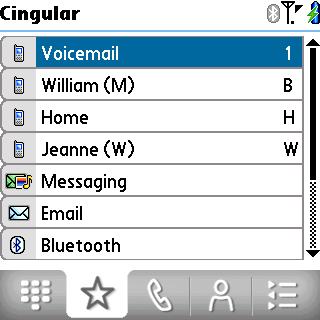

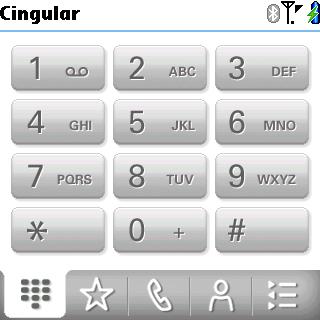

Tabs along the bottom of the screen allow you to flip between different views. You have the familiar number pad dial view and favorites view. Your  favorites can include speed dial entries as well as applications.

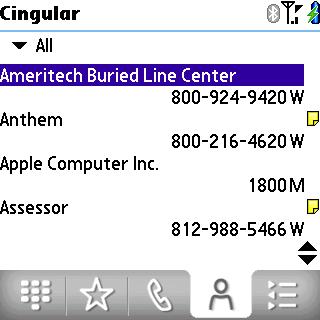

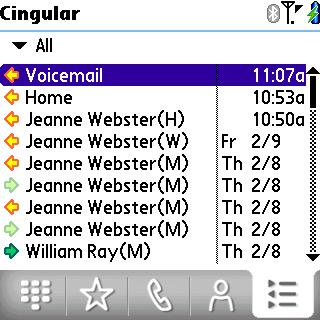

There is also a contacts view and call log view. I don't really like this new interface all that much. It feels less intuitive than the old one screen call interface.

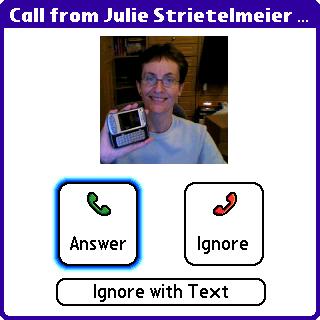

One nice addition is the inclusion of an ignore with text message feature when a call comes in. I wonder if we'll ever have a feature to ignore a call with special voice messages? Now that would be a cool feature! :o)

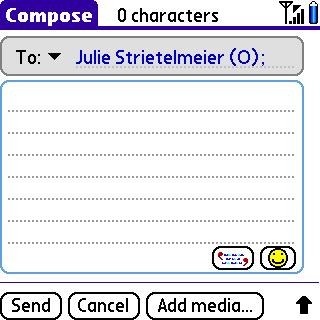

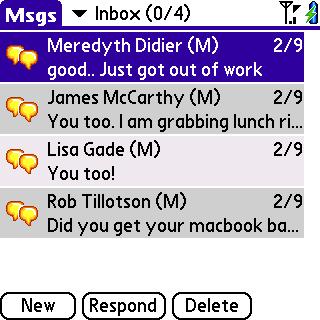

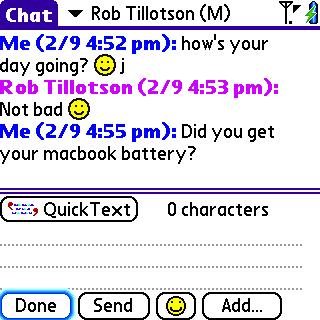

The 680 also includes the great threaded SMS application that we've all come to love. Nothing new here though...

I feel like I'm missing telling you about some great new software feature that the 680 has, but that's it. For the most part, it's just the new calling interface. Exciting! Ok, not really...

So, when it's all said and done, I like the 680, but only because I also liked the 650. To me the 680 feels like the same phone minus the antenna. For that reason, I really only recommend it for those of you looking to buy their first Palm OS GSM Treo, or for those of you that already have a 650 that is showing signs of age.

I guess we'll just have to hope for something more innovative with the next Palm OS Treo. At this point I'll probably stick with the 680 for awhile... after all, I did just plunk down my hard earned cash for it. ;o)
